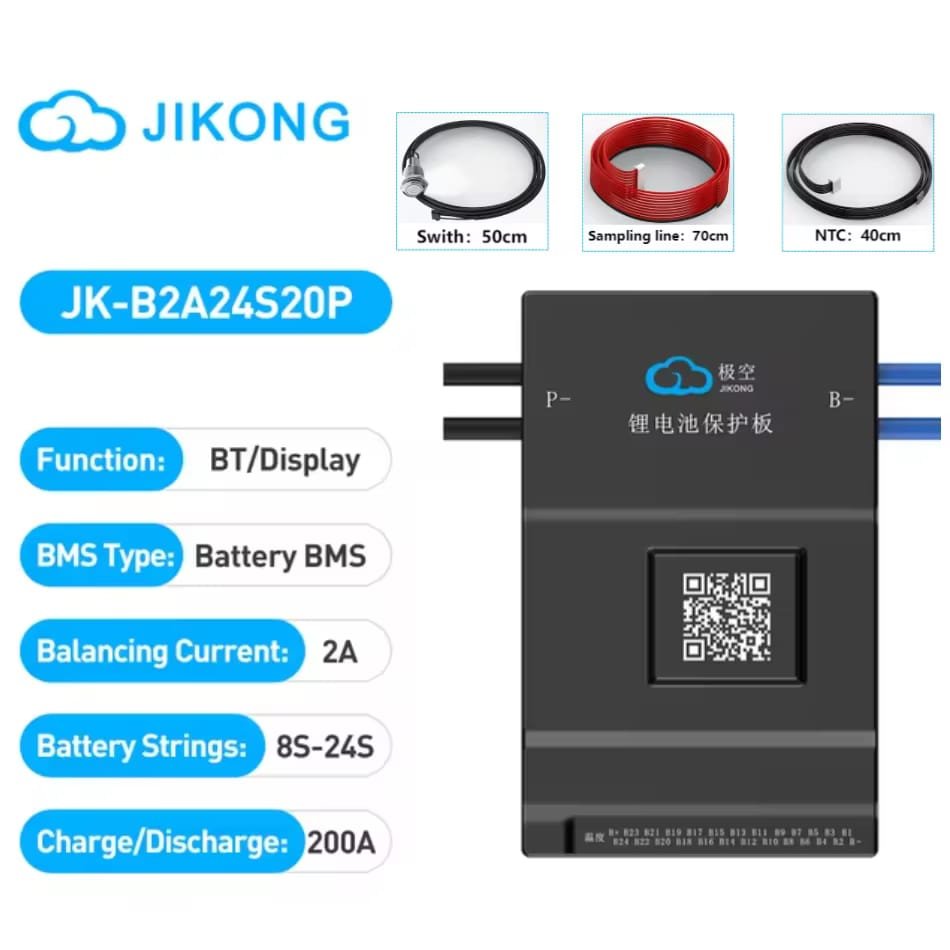

JK Smart BMS 8S-24S 200A with 2A Active Balancing – JK-B2A24S20P
The JK-B2A24S20P Smart BMS is a high-power battery management system designed for 8S–24S lithium battery packs, delivering strong performance and advanced safety protection. With 2A active balancing, low internal resistance, and smart Bluetooth monitoring, it is ideal for large solar energy storage, EV battery systems, and high-voltage lithium battery banks.
| Feature | Specification |
|---|---|
| Model | JK-B2A24S20P |
| Battery Series | 8S – 24S |
| Compatible Battery Types | LiFePO4 / Li-ion / LTO |
| Continuous Charge/Discharge Current | 200A |
| Balancing Type | Active Balancing |
| Balancing Current | 2A |
| Internal Resistance | Approx. 0.5 mΩ |
| Communication | Bluetooth / RS485 / CAN |
| Monitoring | Mobile App Real-Time Monitoring |
| Protection Functions | Over-charge, Over-discharge, Over-current, Short Circuit, Over-temperature |
| Voltage Detection Accuracy | ±3 mV |
| Temperature Monitoring | Built-in Temperature Sensor |
| Applications | Solar Energy Storage, Off-Grid Systems, EV Battery Packs, High Power Lithium Battery Banks |
