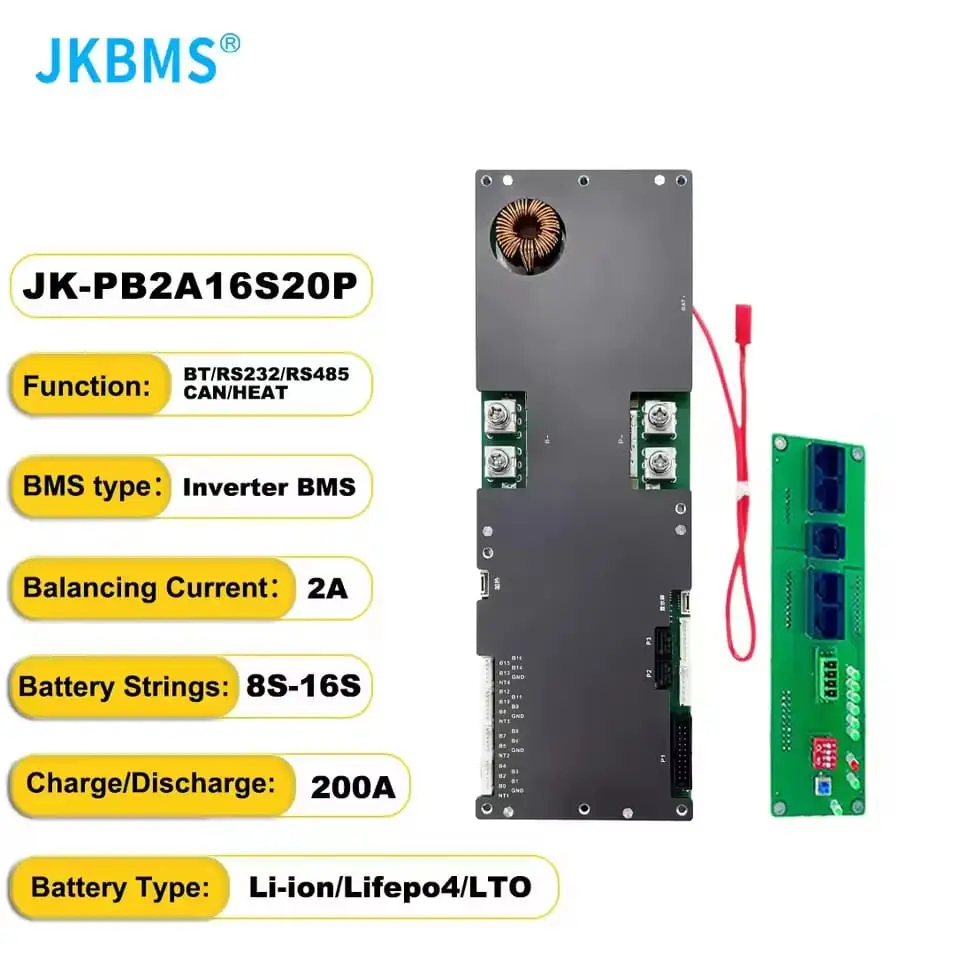

JK Inverter BMS 8S-16S 200A with 2A Active Balancing – JK-PB2A16S20P
The JK-PB2A16S20P Inverter Smart BMS is designed for 8S–16S lithium battery packs used in solar and inverter-based energy storage systems, offering advanced battery protection and intelligent management. With 2A active balancing, inverter communication support, and real-time Bluetooth monitoring, it helps maintain optimal cell balance and improves battery performance and lifespan.
| Feature | Specification |
|---|---|
| Model | JK-PB2A16S20P |
| Battery Series | 8S – 16S |
| Compatible Battery Types | LiFePO4 / Li-ion / LTO |
| Continuous Charge/Discharge Current | 200A |
| Balancing Type | Active Balancing |
| Balancing Current | 2A |
| Internal Resistance | Approx. 0.6 mΩ |
| Communication | Bluetooth / RS485 / CAN |
| Monitoring | Mobile App Real-Time Monitoring |
| Inverter Communication | Supported (Compatible with selected inverter brands) |
| Protection Functions | Over-charge, Over-discharge, Over-current, Short Circuit, Over-temperature |
| Voltage Detection Accuracy | ±5 mV |
| Temperature Monitoring | Multiple Temperature Sensors |
| Applications | Solar Energy Storage, Inverter Battery Systems, DIY Lithium Battery Packs |
