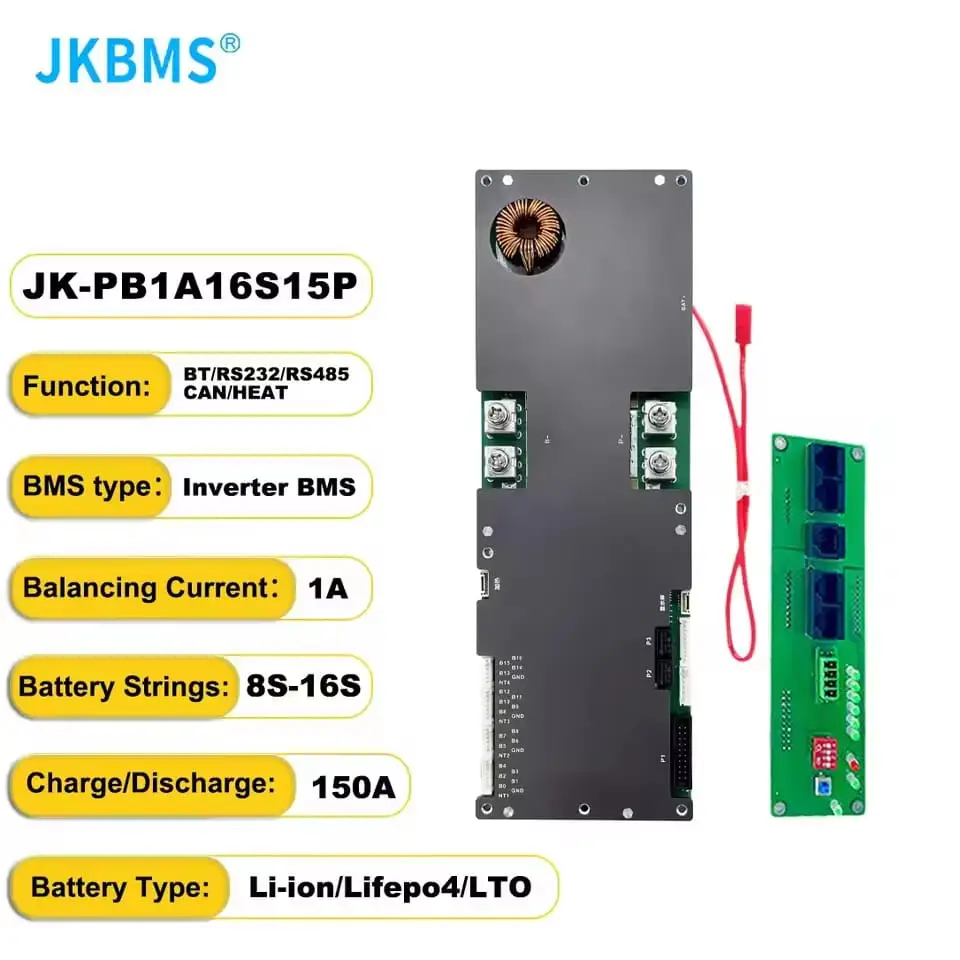

JK Inverter BMS 8S-16S 150A with 1A Active Balancing – JK-PB1A16S15P
The JK-PB1A16S15P Inverter Smart BMS is designed for 8S–16S lithium battery packs used in inverter and solar energy storage systems, delivering reliable battery protection and intelligent management. With 1A active balancing, inverter communication support, and real-time Bluetooth monitoring, it helps improve battery efficiency, safety, and lifespan.
| Feature | Specification |
|---|---|
| Model | JK-PB1A16S15P |
| Battery Series | 8S – 16S |
| Compatible Battery Types | LiFePO4 / Li-ion / LTO |
| Continuous Charge/Discharge Current | 150A |
| Balancing Type | Active Balancing |
| Balancing Current | 1A |
| Internal Resistance | Approx. 0.6 mΩ |
| Communication | Bluetooth / RS485 / CAN |
| Monitoring | Mobile App Real-Time Monitoring |
| Inverter Communication | Supported (Compatible with selected inverter brands) |
| Protection Functions | Over-charge, Over-discharge, Over-current, Short Circuit, Over-temperature |
| Voltage Detection Accuracy | ±5 mV |
| Temperature Monitoring | Multiple Temperature Sensors |
| Applications | Solar Energy Storage, Inverter Battery Systems, DIY Lithium Battery Packs |
