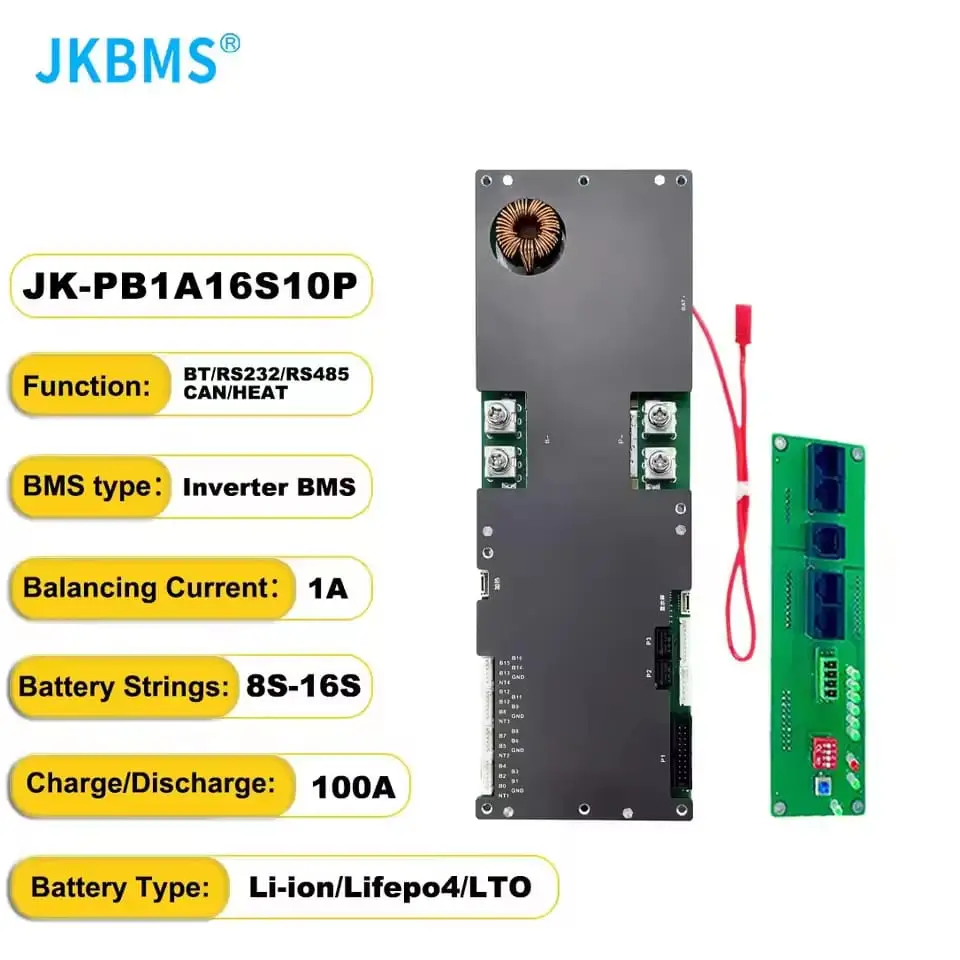

JK Inverter BMS 8S-16S 100A with 1A Active Balancing – JK-PB1A16S10P
The JK-PB1A16S10P Inverter BMS is designed for 8S–16S lithium battery packs used with inverters and energy storage systems, offering advanced battery protection and intelligent monitoring. With 1A active balancing, inverter communication support, and real-time Bluetooth monitoring, it ensures optimal performance and longer battery life for solar and backup power systems.
| Feature | Specification |
|---|---|
| Model | JK-PB1A16S10P |
| Battery Series | 8S – 16S |
| Compatible Battery Types | LiFePO4 / Li-ion / LTO |
| Continuous Charge/Discharge Current | 100A |
| Balancing Type | Active Balancing |
| Balancing Current | 1A |
| Internal Resistance | Approx. 0.6 mΩ |
| Communication | Bluetooth / RS485 / CAN |
| Monitoring | Mobile App Real-Time Monitoring |
| Inverter Communication | Supported (Compatible with selected inverter brands) |
| Protection Functions | Over-charge, Over-discharge, Over-current, Short Circuit, Over-temperature |
| Voltage Detection Accuracy | ±5 mV |
| Temperature Monitoring | Multiple Temperature Sensors |
| Applications | Solar Energy Storage, Inverter Battery Systems, DIY Lithium Battery Packs |
