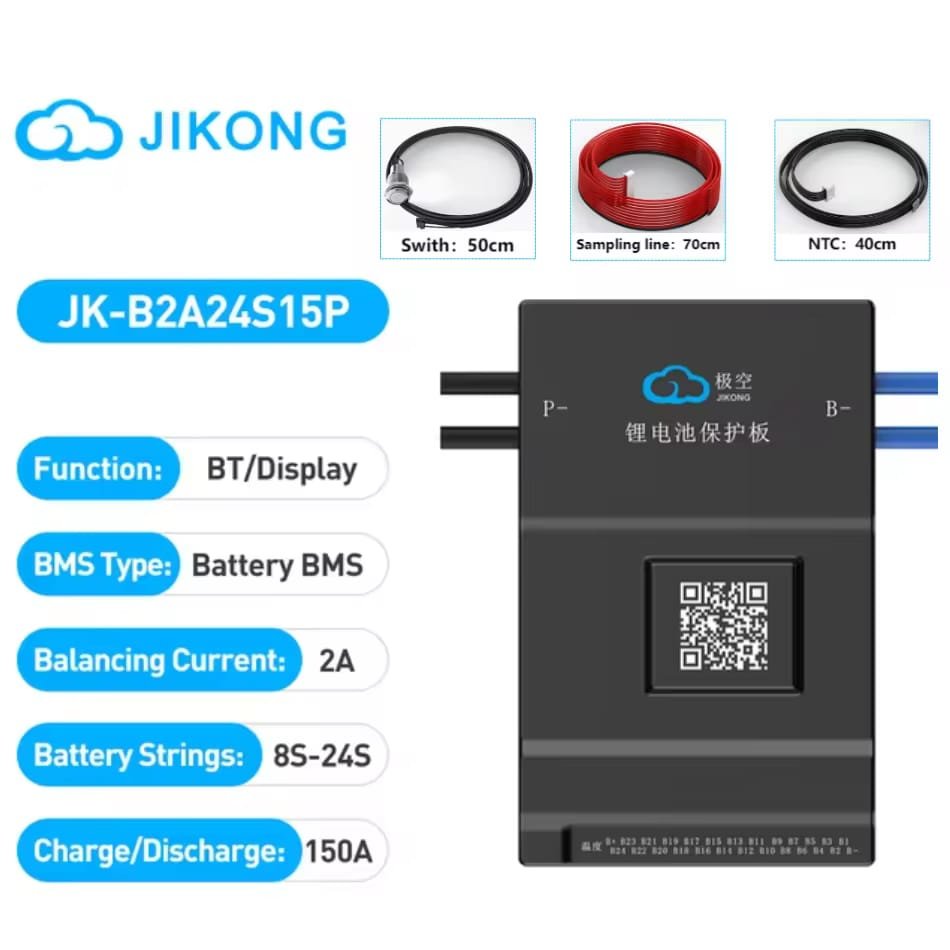

JK Smart BMS 8S-24S 150A with 2A Active Balancing – JK-B2A24S15P
The JK-B2A24S15P Smart BMS is a high-performance battery management system designed for 8S–24S lithium battery packs, providing advanced protection, high current handling, and efficient cell balancing. With 2A active balancing, low internal resistance, and Bluetooth smart monitoring, it is ideal for solar energy storage, EV battery packs, and high-voltage lithium battery systems.
| Feature | Specification |
|---|---|
| Model | JK-B2A24S15P |
| Battery Series | 8S – 24S |
| Compatible Battery Types | LiFePO4 / Li-ion / LTO |
| Continuous Charge/Discharge Current | 150A |
| Balancing Type | Active Balancing |
| Balancing Current | 2A |
| Internal Resistance | Approx. 0.5 mΩ |
| Communication | Bluetooth / RS485 / CAN |
| Monitoring | Mobile App Real-Time Monitoring |
| Protection Functions | Over-charge, Over-discharge, Over-current, Short Circuit, Over-temperature |
| Voltage Detection Accuracy | ±3 mV |
| Temperature Monitoring | Built-in Temperature Sensor |
| Applications | Solar Energy Storage, Off-Grid Systems, EV Battery Packs, Lithium Battery Banks |
