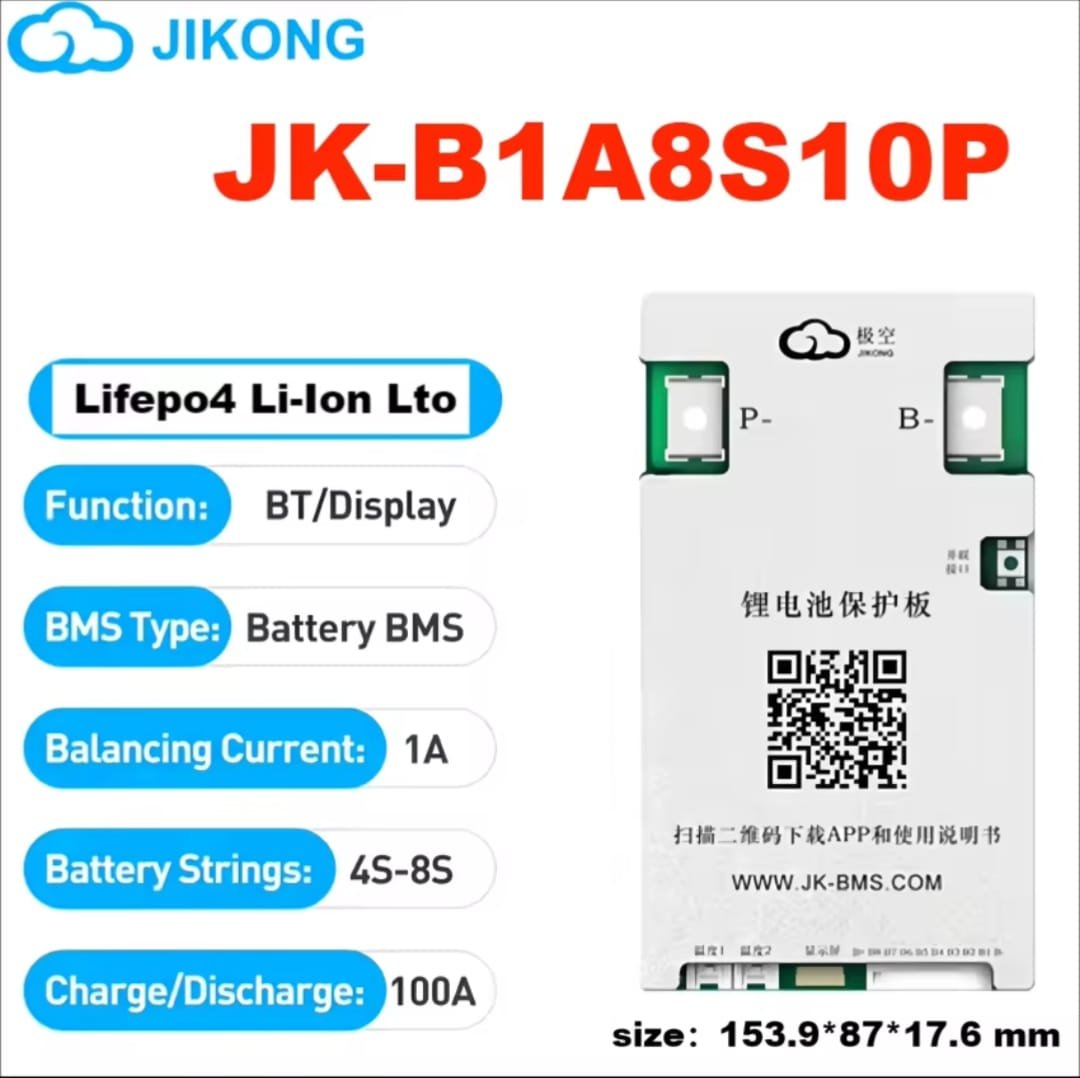

JK Smart BMS 4S-8S 100A with 1A Active Balancing – JK-B1A8S10P
The JK-B1A8S10P Smart BMS is a reliable battery management system designed for 4S–8S lithium battery packs, providing stable performance and advanced protection. It features 1A active balancing and smart monitoring, making it ideal for solar energy storage, off-grid systems, and DIY lithium battery projects.
| Feature | Specification |
|---|---|
| Model | JK-B1A8S10P |
| Battery Series | 4S – 8S |
| Compatible Battery Types | LiFePO4 / Li-ion / LTO |
| Continuous Charge/Discharge Current | 100A |
| Balancing Type | Active Balancing |
| Balancing Current | 1A |
| Internal Resistance | Approx. 0.8 mΩ |
| Communication | Bluetooth / RS485 / CAN |
| Monitoring | Mobile App Real-Time Monitoring |
| Protection Functions | Over-charge, Over-discharge, Over-current, Short Circuit, Over-temperature |
| Voltage Detection Accuracy | ±3 mV |
| Temperature Monitoring | Built-in Temperature Sensor |
| Applications | Solar Energy Storage, Off-Grid Systems, Lithium Battery Packs |
